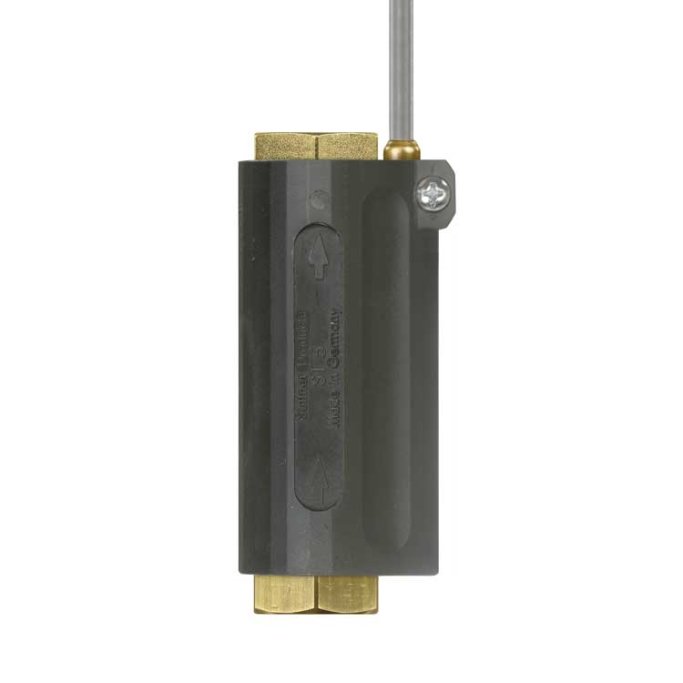

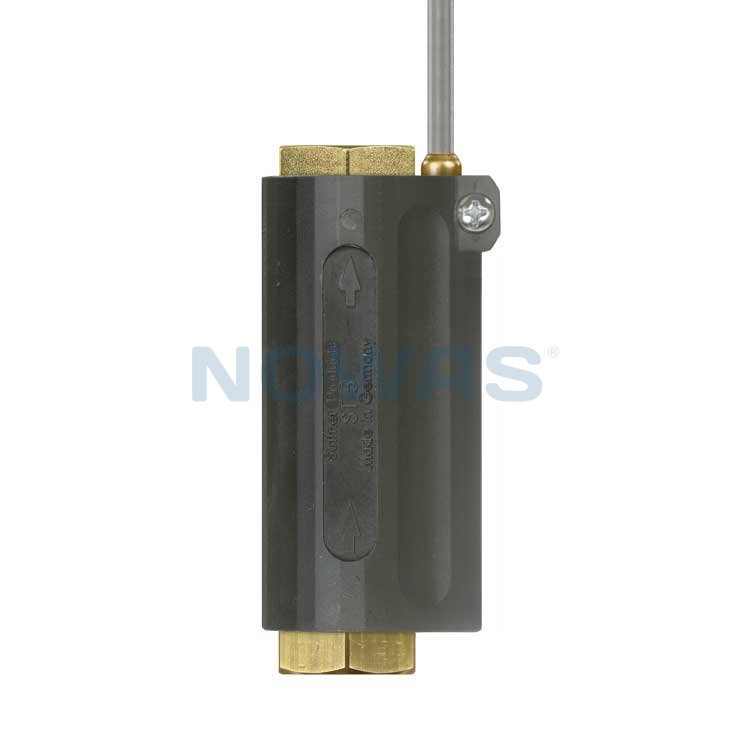

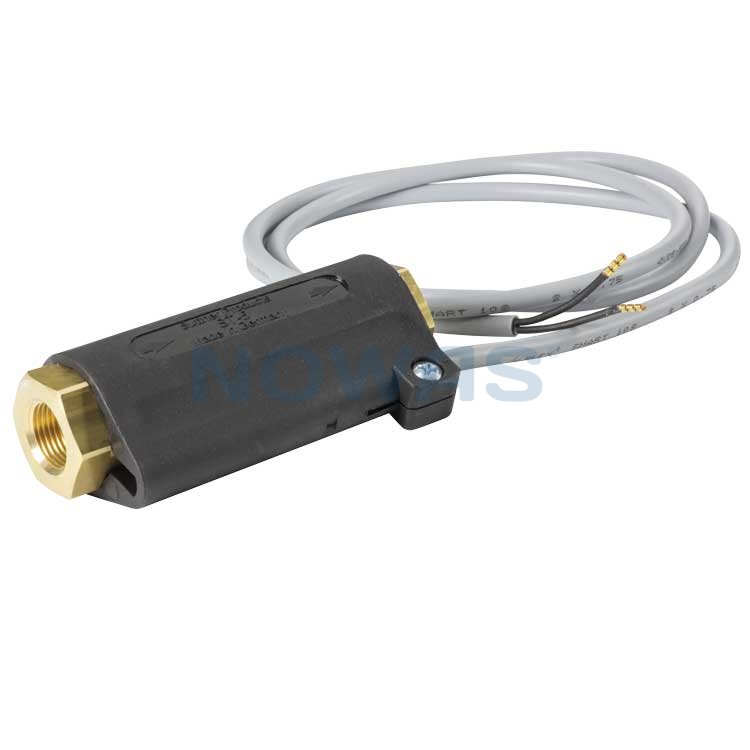

Flowmeter ST-5 30 l/min, 350 bar
Achieve precise monitoring and maximum operational reliability with Flowmeter ST-5, a robust and high-performance flowmeter for demanding high-pressure systems.
This model is developed for professional installations where precise flow and safety are essential.
With a capacity of up to 30 liters per minute and a pressure tolerance of up to 350 bar, the ST-5 is ideal for use in high-pressure cleaners, industrial washing systems, pumping systems and production equipment.
The vertical float switch makes it possible to automatically monitor the flow and give a signal or stop the system if the flow becomes too low.
The flow meter is equipped with 3/8 internal threads in both inlet and outlet for easy integration into existing piping systems.
The built-in 1 A / 250 V switch provides flexible connection options for control and safety systems.
With a temperature tolerance of up to 80°C, it is suitable for both cold and hot liquids.
Flowmeter ST-5 is the safe choice when you want reliable measurement, high quality and long service life.
Key Specifications:
- Max. flow: 30 l/min
- Max. pressure: 350 bar
- Max temperature: 80°C
- Connection: 3/8" internal thread (in/out)
- Vertical float switch
- Contact: 1 A 250 V
- Measuring volume: 3.4 l (inside) / 2.9 l (outside)
