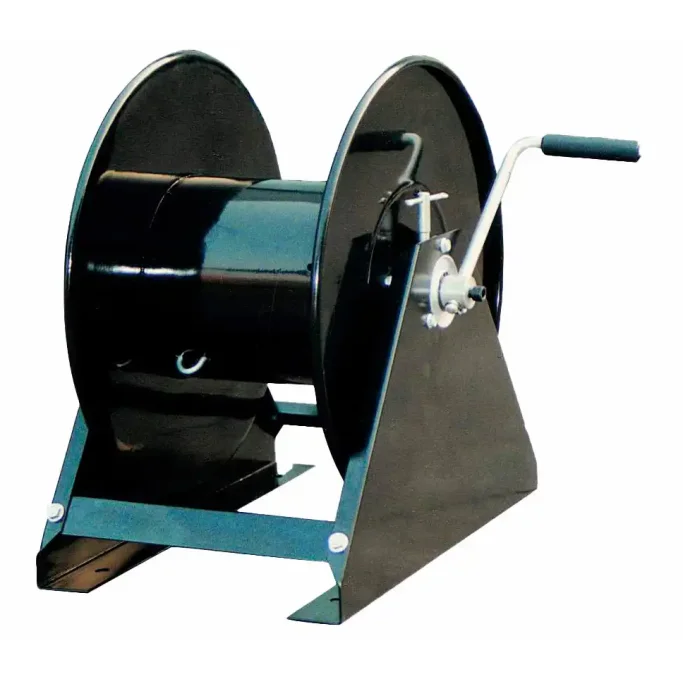

Manual hose reel without hose - 200 bar
Cost-effective hose reel for general use and flexible installation
EH420454 is a manual hose reel for high-pressure hoses up to 200 bar. The reel is supplied without a hose and is suitable for general use where the hose needs to be stored conveniently and kept readily accessible. It can be mounted on the floor, wall or workbench.
- For high-pressure hoses with a maximum pressure of 200 bar
- Holds up to 45 metres of 1/2" hose or 90 metres of 3/8" hose
- Supplied without a hose, allowing it to be adapted to the installation required
- Fitted with a powder-coated U-shaped steel frame, adjustable drum brake and brass swivel
The hose reel features a sturdy, powder-coated U-shaped steel frame that provides a robust construction for daily use. The adjustable drum brake allows the reel's operation to be adapted, while the continuously adjustable spring lock helps prevent the hose from unwinding from the drum.
EH420454 has a 1/2" female-threaded outlet and is designed for mounting on the floor, wall or workbench. As the reel is supplied without a hose, it can be combined with a suitable 1/2" or 3/8" hose within the stated capacity.
Benefits
- Handles up to 200 bar
- Robust powder-coated steel construction
- Flexible mounting options
- Adjustable drum brake
- Supplied without a hose for flexible adaptation
Why choose EH420454?
Choose EH420454 if you need a simple and robust manual hose reel for general use. Its flexible mounting, adjustable drum brake and option to select the hose length according to your needs make the reel practical for various high-pressure hose installations.
Choose this if
- You need a manual hose reel for high pressure up to 200 bar
- The reel must be mountable on the floor, wall or workbench
- You want to choose and install the hose yourself
- You need capacity for up to 45 metres of 1/2" hose or 90 metres of 3/8" hose
Consider an alternative if
- You need a complete solution supplied with a hose
- You want an automatic or motor-driven hose reel
- You need a different hose size or greater capacity than specified
| Item Number | 16524-10 |
| Category | Hose reels |
Specifications
| Color | Black |
| Product | Manual hose reel without hose |
| Item number | EH420454 |
| Hose length | Without hose |
| Hose capacity | Up to 1/2" x 45 m or 3/8" x 90 m |
| Dimension | 1/2" |
| Max. pressure | 200 bar |
| Outlet | 1/2" female thread |
| Material | Powder-coated steel |
| EAN | 5706224026745 |
