Flow switch ST-7, 1.5 lpm, 2x3/8" internal thread

Item no.: 671553
48,20 EUR
Total ekskl. moms 48,20 EUR

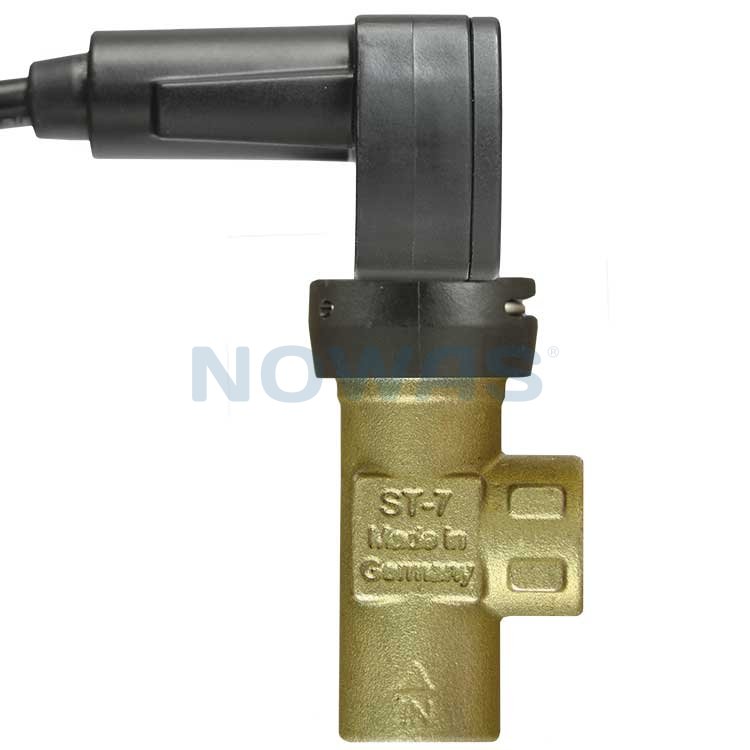

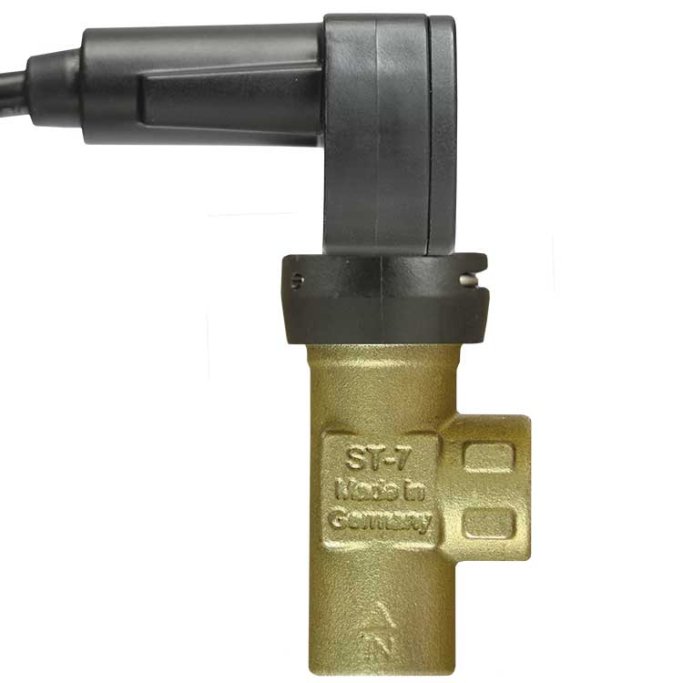

FLOW SWITCH ST-7 1,5 l/min - flow switch for high-pressure systems

Flow switch with robust microswitch for high-pressure pumps and water-carrying systems

FLOW SWITCH ST-7 1,5 l/min from Suttner is a flow switch for detecting water flow in high-pressure systems. It is suitable for installations where an electrical contact must be activated at a water flow rate of 1,5 l/min.

  • Activation point at 1,5 l/min
  • Robust industrial microswitch with higher electrical load capacity
  • Can be installed regardless of the installation direction
  • Suitable for high-pressure systems up to 350 bar

ST-7 has been developed with an industrial microswitch instead of the more sensitive reed contacts, which normally have a lower switching capacity. This allows for a higher electrical load and a longer service life.

The electrical and hydraulic components are separated in the design. The flow switch has a low switching point while also being able to handle large volumes of water. The pressure drop is specified as 1,5 bar at a flow rate of 30 l/min.

Advantages

  • Activates at a low flow rate
  • Robust microswitch for industrial use
  • High maximum pressure and temperature resistance
  • Flexible installation without requirements for a specific installation direction

Why choose FLOW SWITCH ST-7 1,5 l/min?

Choose ST-7 if you need a robust flow switch for monitoring or controlling water flow in a high-pressure system. It combines a low activation point with a robust microswitch and supports systems with high water flow, high pressure and temperatures up to 80 °C.

Choose this if

  • You need activation at a water flow rate of 1,5 l/min
  • The flow switch is to be integrated into a high-pressure system
  • You want a solution with an industrial microswitch
  • Installation without a specific installation direction is an advantage

Brand RM Suttner
Item Number 671553
Category Spare parts for high-pressure washers

Specifications

Product name FLOW SWITCH ST-7 1,5L/MIN
Manufacturer Suttner
Product number 200007510
Series ST-7
Activation point 1,5 l/min
Closing point 0,8 l
Max. flow rate 45 l/min
Max. pressure 350 bar
Max. temperature 80 °C
Electrical voltage 250 V
Electrical load 10 A
Starting current 20 A (NC) and 15 A (NO)
Cable length 1.200 mm
Connections 3/8"
Installation position Independent of the installation direction
