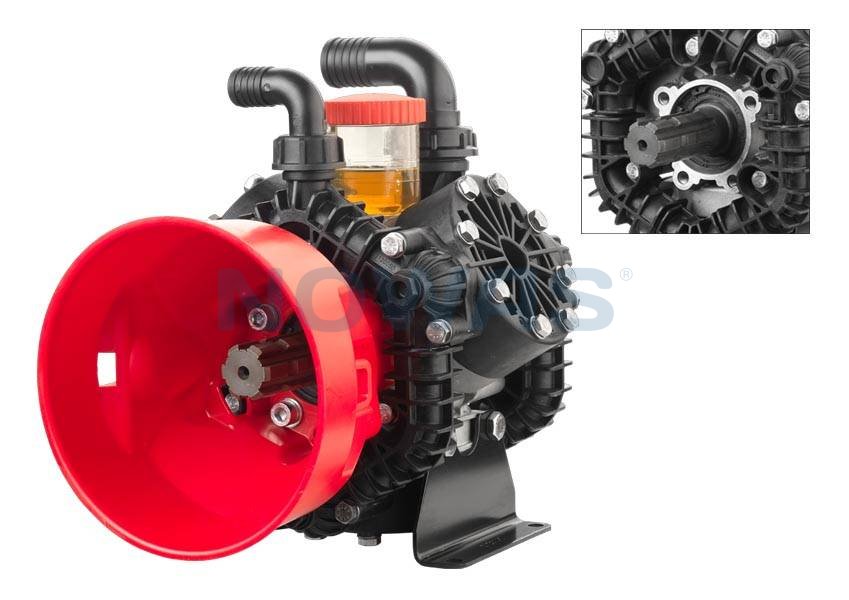

Annovi Reverberi AR 45 bp C three-diaphragm pump BlueFlex 32000

Item no.: AR45-32000
549,00 EUR
Order goods
pcs.

Product Description

Annovi Reverberi AR 45 bp C Semi-hydraulic three-diaphragm pump BlueFlex 32000
Semi-hydraulic three-diaphragm pump, recommended for boom spraying and liquid fertilization.

The pump is designed and constructed to pump and compress liquids on spraying machines for the protective treatment of agricultural crops and garden plants.
The pump incorporates radial pistons which actuate the diaphragms by means of an oil cushion. The diaphragms are connected to the pistons in their middles by means of plates and secured at the edges between the cylinder liner and head.
The motion of the piston draws the diaphragm inward (intake) and then outward (delivery). The flow of liquid is regulated by the intake and delivery valves.
Oil between the pump body and diaphragm serves not only as a lubricant but also as a pressure compensation medium.

Oil bath crank mechanisms with inspectable oil reservoir. Nuts and bolts with Geomet protective treatment. Nitrile rubber diaphragms as standard, Viton®, Desmopan® or HPDS® diaphragms available upon request.
All parts in contact with spraying liquids are polypropylene and stainless steel. With 1"3/8 splined shaft

Technical specifications
AR Code 32000
Version C
Diaphragms 3
Max flow (lpm) 43.3
Max flow (gpm) 11.4
Max Pressure (bar) 20
Max Pressure (psi) 290
Power (Hp) 2.1
RPM 550
Net weight (Kg) 11
Size (mm) - L 272
Size (mm) - H 332
Size (mm) - W 336.5
Suction (mm) ø 35
Outlet (mm) ø 25
Max temperature (°C) 60
